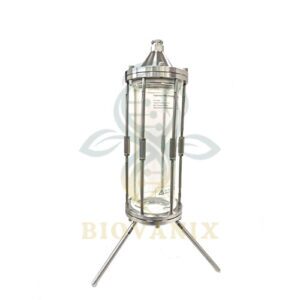

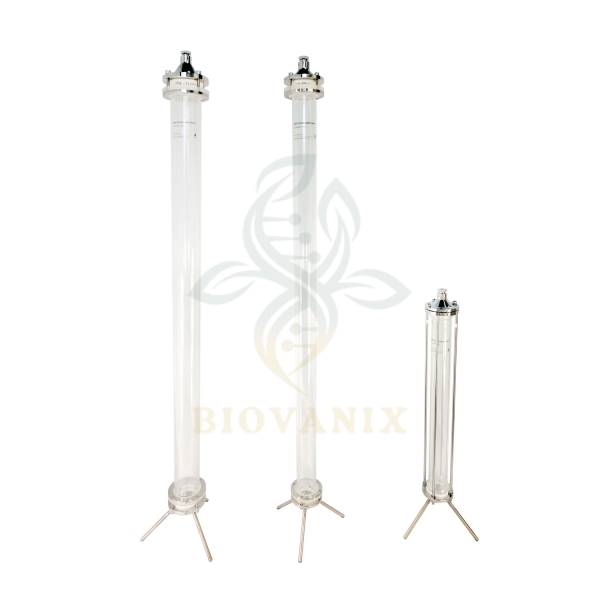

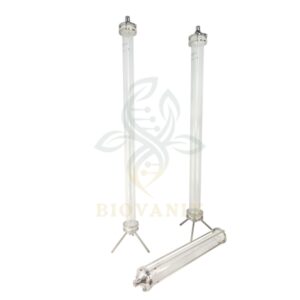

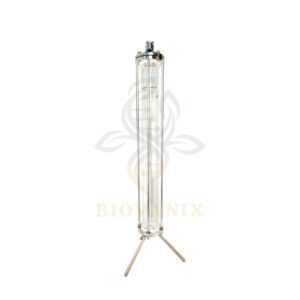

Fixed-bed Glass Column

HT series chromatographic columns have a unique flared cylinder design for more even fluid distribution. The column uses the unique nozzle instead of the sieve plate, which is especially suitable for solid sample loading and dry sample mixing. It effectively prevents the destruction of the column bed caused by the high mobile phase line velocity. HT chromatographic column has a large volume of sample loading. It can be pumped to eliminate the blocking of the inlet valve interface caused by a high concentration of samples.

HT series chromatography column is suitable for reverse phase, ion exchange, gel permeation, and affinity chromatography. Compared with ordinary open glass columns, the purification time is shortened 2-10 times with higher purification efficiency and less solvent usage. The column tube is convenient to disassemble and wash, saving the researchers precious time.

Column Selection

No.	Inner diameter (mm)	Length (mm)	Max. Pressure (bar)	Silica Resin (40-60um) (g)	Sampling (g)	Flow Rate (mL/min)
HT10/110	10	110	40	Protective column, on-column injector.
HT-15/310	15	310	40	45	0.45-4.5	5-20
HT-15/460	15	460	40	70	0.7-7.00	5-20
HT-15/920	15	920	40	140	1.4-14.00	5-20
HT26/100	26	100	40	Protective column, on-column injector.
HT-26/310	26	310	40	130	1.30-13.00	20-70
HT-26/460	26	460	40	200	2.00-20.00	20-70
HT-26/920	26	920	40	400	4.00-40.00	20-70
HT-36/310	36	310	30	240	2.40-24.00	45-135
HT-36/460	36	460	30	350	3.50-35.00	45-135
HT-36/920	36	920	30	700	7.00-70.00	45-135
HT-49/100	49	100	20	Protective column, on-column injector.
HT-49/310	49	310	20	450	4.50-45.00	80-200
HT-49/460	49	460	20	650	6.50-65.00	80-200
HT-49/920	49	920	20	1300	13.00-130.00	80-200
HT-70/310	70	310	10	880	8.80-88.00	170-250
HT-70/460	70	460	10	1300	13.00-130.00	170-250
HT-70/920	70	920	10	2600	26.00-260.00	170-250
HT-100/310	100	310	10	1900	19.00-190.00	200-250
HT-100/460	100	460	10	2750	27.50-275.00	170-250
HT-100/920	100	920	10	5500	55.00-550.00	200-250
HT-150/300	150	300	5	3180	36.50-365.00	500-800
HT-150/600	150	600	5	6360	55.00-550.00	500-800
HT-150/900	150	900	5	9540	110.00-1100.00	500-800
