Glass Chromatography Column
BV glass chromatography columns are designed for the standard liquid chromatography of macromolecules. The design is based on high reproducibility and precision results. The columns are compatible with aqueous solution and organic solvent in liquid chromatography. The column head is applied with a chromatography column which includes a head and a bottom. A larger scale of column bed height can be obtained if the bottom part is replaced with another column head.
Advantages
- Pressure-resistant borosilicate glass, visualization and stability
- Supporting foot, adjustable level, convenient for users to use
- Reasonable price, high cost performance
- Reproducibility, excellent column efficiency and reliable results
- Zero dead volume structural connections
Product
Single-layer Glass Column
Double-layer Glass Column
Fix-bed Glass Column
Injection Loop
Oligo Synthesis Column
Low-pressure Chromatography Column
Column Selection
Single-layer Glass Column
| No. |
Internal Diameter (mm) |
Length (mm) |
One-side Adjustable Type |
Double-side Adjustable Type |
Pressure (bar) |
| Volume (mL) |
Bed Height (cm) |
Volume (mL) |
Bed Height (cm) |
| YS16/200 |
16 |
200 |
4-30 |
2-14.5 |
0-30 |
0-14.5 |
7 |
| YS16/400 |
16 |
400 |
46-72 |
22-34.5 |
17-72 |
8.5-34.5 |
7 |
| YS16/1000 |
16 |
1000 |
173-199 |
82-94.5 |
144-199 |
68.5-94.5 |
7 |
| YS26/200 |
26 |
200 |
10-73 |
2-14.5 |
0-73 |
0-14.5 |
7 |
| YS26/400 |
26 |
400 |
111-174 |
22-34.5 |
43-174 |
8.5-34.5 |
7 |
| YS26/1000 |
26 |
1000 |
415-479 |
82-94.5 |
347-479 |
68.5-94.5 |
7 |
Double-layer Glass Column
| No. |
Internal
Diameter (mm) |
Length
(mm) |
One-side Adjustable Type |
Double-side Adjustable Type |
| Volume
(mL) |
Bed Height (cm) |
Volume
(mL) |
Bed Height (cm) |
| BSXK10/150 |
10 |
150 |
– |
0-12 |
0-11 |
| BSXK10/200 |
10 |
200 |
– |
0-25 |
0-16 |
| BSXK10/400 |
10 |
400 |
– |
0-68 |
21-36 |
| BSXK10/1000 |
10 |
1000 |
– |
0-150 |
81-96 |
| BSXK16/200 |
16 |
200 |
4-30 |
2-14.5 |
0-30 |
0-14.5 |
| BSXK16/400 |
16 |
400 |
46-72 |
22-34.5 |
17-72 |
8.5-34.5 |
| BSXK16/700 |
16 |
700 |
109-136 |
52-64.5 |
81-136 |
38.5-64.5 |
| BSXK16/1000 |
16 |
1000 |
173-199 |
82-94.5 |
144-199 |
68.5-94.5 |
| BSXK26/200 |
26 |
200 |
10-73 |
2-14.5 |
0-73 |
0-14.5 |
| BSXK26/400 |
26 |
400 |
111-174 |
22-34.5 |
43-174 |
8.5-34.5 |
| BSXK26/700 |
26 |
700 |
263-326 |
54-64.5 |
195-326 |
38.5-64.5 |
| BSXK26/1000 |
26 |
1000 |
415-479 |
82-94.5 |
347-479 |
68.5-94.5 |
| BSXK50/200 |
50 |
200 |
19-275 |
1-14 |
0-275 |
0-14 |
| BSXK50/300 |
50 |
300 |
215-471 |
11-24 |
0-471 |
0-24 |
| BSXK50/600 |
50 |
600 |
804-1060 |
41-54 |
549-1060 |
28-54 |
| BSXK50/1000 |
50 |
1000 |
1589-1849 |
81-94 |
1334-845 |
68-94 |
Fixed-bed Glass Column
| No. |
Inner diameter
(mm) |
Length
(mm) |
Max.
Pressure
(bar) |
Silica Resin (40-60um)
(g) |
Sampling (g) |
Flow Rate (mL/min) |
| HT10/110 |
10 |
110 |
40 |
Protective column, on-column injector. |
| HT-15/310 |
15 |
310 |
40 |
45 |
0.45-4.5 |
5-20 |
| HT-15/460 |
15 |
460 |
40 |
70 |
0.7-7.00 |
5-20 |
| HT-15/920 |
15 |
920 |
40 |
140 |
1.4-14.00 |
5-20 |
| HT26/100 |
26 |
100 |
40 |
Protective column, on-column injector. |
| HT-26/310 |
26 |
310 |
40 |
130 |
1.30-13.00 |
20-70 |
| HT-26/460 |
26 |
460 |
40 |
200 |
2.00-20.00 |
20-70 |
| HT-26/920 |
26 |
920 |
40 |
400 |
4.00-40.00 |
20-70 |
| HT-36/310 |
36 |
310 |
30 |
240 |
2.40-24.00 |
45-135 |
| HT-36/460 |
36 |
460 |
30 |
350 |
3.50-35.00 |
45-135 |
| HT-36/920 |
36 |
920 |
30 |
700 |
7.00-70.00 |
45-135 |
| HT-49/100 |
49 |
100 |
20 |
Protective column, on-column injector. |
| HT-49/310 |
49 |
310 |
20 |
450 |
4.50-45.00 |
80-200 |
| HT-49/460 |
49 |
460 |
20 |
650 |
6.50-65.00 |
80-200 |
| HT-49/920 |
49 |
920 |
20 |
1300 |
13.00-130.00 |
80-200 |
| HT-70/310 |
70 |
310 |
10 |
880 |
8.80-88.00 |
170-250 |
| HT-70/460 |
70 |
460 |
10 |
1300 |
13.00-130.00 |
170-250 |
| HT-70/920 |
70 |
920 |
10 |
2600 |
26.00-260.00 |
170-250 |
| HT-100/310 |
100 |
310 |
10 |
1900 |
19.00-190.00 |
200-250 |
| HT-100/460 |
100 |
460 |
10 |
2750 |
27.50-275.00 |
170-250 |
| HT-100/920 |
100 |
920 |
10 |
5500 |
55.00-550.00 |
200-250 |
| HT-150/300 |
150 |
300 |
5 |
3180 |
36.50-365.00 |
500-800 |
| HT-150/600 |
150 |
600 |
5 |
6360 |
55.00-550.00 |
500-800 |
| HT-150/900 |
150 |
900 |
5 |
9540 |
110.00-1100.00 |
500-800 |
Injection Loop
Oligo Synthesis Column
| Product |
Inner Diameter |
Height |
| Oligo35 Column |
35mm |
150mm |
| Oligo50 Column |
50mm |
250mm |
| Oligo100 Column |
100mm |
500mm |
| Product |
Volume |
Inner Diameter |
Height |
| Oligo1.2 |
1.2ml |
10mm |
15mm |
| Oligo6.3 |
6.3ml |
20mm |
20mm |
| Oligo12 |
12ml |
27mm |
21mm |
| Oligo24 |
24ml |
35mm |
25mm |
| Oligo48 |
48ml |
44mm |
32mm |

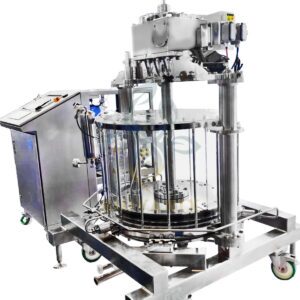

Low-pressure Glass Column
| Product |
Column Inner Diameter (mm) |
Sectional Area
(cm2) |
Column Height (mm) |
Column Bed Height (cm) |
Column Bed
Volume (L) |
Max. Pressure
(bar) |
Net Wight
(Kg) |
| Min |
Max |
Min |
Max |
| MPC100/500 |
70 |
38.5 |
500 |
0 |
35 |
0 |
1.4 |
8 |
14 |
| MPC100/750 |
70 |
38.5 |
950 |
40 |
80 |
1.5 |
3.1 |
8 |
14 |
| MPC100/500 |
100 |
78.5 |
500 |
0 |
35 |
0 |
2.7 |
8 |
18 |
| MPC100/750 |
100 |
78.5 |
750 |
20 |
60 |
1.6 |
4.7 |
8 |
20 |
| MPC100/950 |
100 |
78.5 |
950 |
40 |
80 |
3.1 |
6.3 |
8 |
21 |
| MPC140/500 |
140 |
154 |
500 |
0 |
35 |
0 |
5.4 |
6 |
30 |
| MPC140/750 |
140 |
154 |
750 |
20 |
60 |
3.1 |
9.2 |
6 |
33 |
| MPC140/950 |
140 |
154 |
950 |
40 |
80 |
6.2 |
12.3 |
6 |
35 |
| MPC200/500 |
200 |
314 |
500 |
0 |
35 |
0 |
11 |
6 |
36 |
| MPC200/750 |
200 |
314 |
750 |
20 |
60 |
6.3 |
18.8 |
6 |
39 |
| MPC200/950 |
200 |
314 |
950 |
40 |
80 |
12.6 |
25.1 |
6 |
42 |
| MPC300/500 |
300 |
706.5 |
500 |
0 |
35 |
0 |
24.7 |
4 |
58 |
| MPC300/750 |
300 |
706.5 |
750 |
20 |
60 |
14.1 |
42.4 |
4 |
63 |
| MPC300/950 |
300 |
706.5 |
95 |
40 |
80 |
28.2 |
56.5 |
4 |
67 |
| MPC450/500 |
450 |
1560 |
50 |
0 |
35 |
0 |
55.6 |
3 |
230 |
