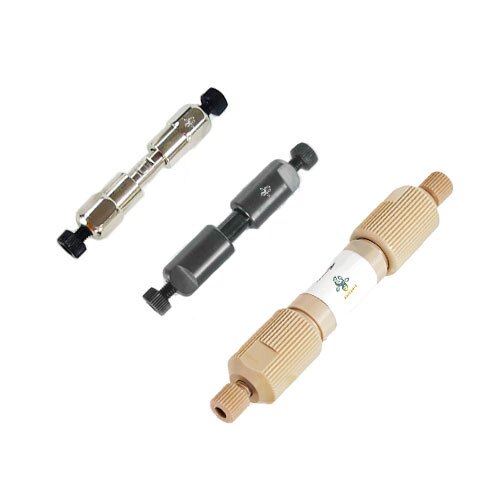

Prosep Protein A HPLC Column
Biovanix Prosep Protein A columns are designed for analytical and preparative purification of antibodies and fusion proteins. The packed columns contain cross-linked poly(styrene-divinylbenzene) flow-through particles with a unique pore structure that provides rapid mass transport and enables rapid chromatography. The particle surface is coated with a cross-linked polyhydroxylated polymer. This coating is further derivatized with affinity ligands
Parameter
| Ligand | Substrate | Pressure | pH Range | Dynamic Capacity | Flow Rate | Life Time | |
| Prosep PrA PLUS Column | rProtein A | 20 μm PSDVB | 1200psi | 2-11 | 40mg human IgG/ml media[1] | 1-3ml/min | 1000-3000 circles[2] |
| Prosep PrA Column | rProtein A | 40 μm PSDVB | 1200psi | 2-11 | 40mg human IgG/ml media[1] | 1-3ml/min | 1000-3000 circles[2] |
- PS/DVB: Poly(styrene/divinylbenzene)
- The testing result is based on local laboratory tests.
Order Information
|
|
2.1-30mm | 4.6-50mm | ||
| Stainless Steel Column | PEEK column | Stainless Steel Column |
PEEK column |
|
|
Protein A Column |
1107-030-002103 | 1107-030-002103P | 1107-030-004605 | 1107-030-004605P |
| Protein A PLUS Column | 1107-020-002103 | 1107-020-002103P | 1107-020-004605 |
1107-020-004605P |
For OEM service, please contact us directly.
