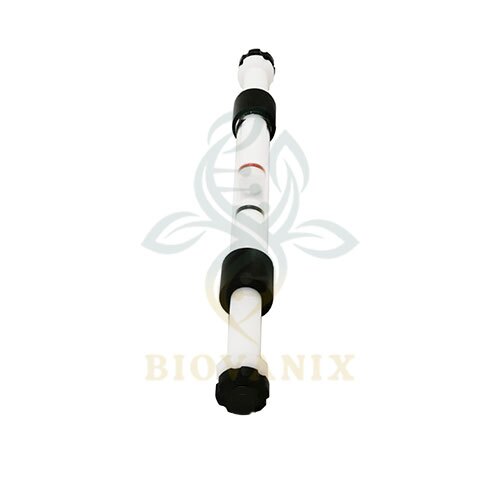

Single-layer Glass Chromatography Column
BioVanix glass chromatography column is designed for the standard liquid chromatography of macromolecules. The design is based on high reproducibility and precision results. The columns are compatible with aqueous solution and organic solvent in liquid chromatography. The column head is applied with a chromatography column which includes a head and a bottom. A larger scale of column bed height can be obtained if the bottom part is replaced with another column head.
Advantages
- Pressure-resistant borosilicate glass, visualization and stability
- Supporting foot, adjustable level, convenient for users to use
- Reasonable price, high cost performance
- Reproducibility, excellent column efficiency and reliable results
- Zero dead volume structural connections
Glass Column Parameter
| Working Temperature | 4-40℃ |
| pH Range | 1-14 |
| Chemical Stability | Tolerant to salt, acid, alkali, and a small number of organic solvents alcohols, ketones, phenols. |
| Column Material | Borosilicate glass |
| Column Head Material | PTFE |
| Thread–end Material | PEEK |
| Seal Ring Material | PTFE/EPDM |
| Tubing Material | 1/16 & 1/8 (optional) |
| Connector Material | PEEK 1/16 & 1/8 |
Selection For Chromatography Glass Column
No. | Internal Diameter (mm) | Length (mm) | One-side Adjustable Type | Double-side Adjustable Type | Pressure (bar) | ||
Volume (mL) | Bed Height (cm) | Volume (mL) | Bed Height (cm) | ||||
YS16/200 | 16 | 200 | 4-30 | 2-15 | 0-30 | 0-15 | 10 |
YS16/400 | 16 | 400 | 44-70 | 22-35 | 18-70 | 9-35 | 10 |
YS16/700 | 16 | 700 | 104-130 | 52-65 | 78-130 | 39-65 | 10 |
YS16/1000 | 16 | 1000 | 164-190 | 82-95 | 138-190 | 69-95 | 10 |
YS26/200 | 26 | 200 | 10-79 | 2-15 | 0-79 | 0-15 | 10 |
YS26/400 | 26 | 400 | 116-185 | 22-35 | 47-185 | 9-35 | 10 |
YS26/700 | 26 | 700 | 275-344 | 52-65 | 206-344 | 39-65 | 10 |
YS26/1000 | 26 | 1000 | 435-504 | 82-95 | 366-504 | 69-95 | 10 |
Adaptor
- 130ml
- 320ml

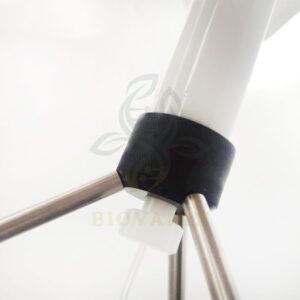

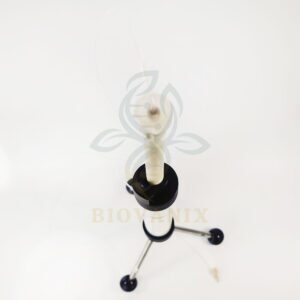

Product Details For Chromatograpny Glass Column
