Fixed/Adjustable Oligo Synthesis Column

Maximize Your Oligonucleotide Synthesis Scale-Up

The transition from lab-scale research to industrial-scale oligonucleotide production demands equipment that offers flexibility, reliability, and precision. Biovanix Oligo Synthesis Columns are specifically engineered as the largest process development column for seamless integration with the ÄKTA oligopilot plus synthesizer, providing the critical control you need for successful scale variation and method validation.

  • Adjustable column bed height recommended working height between 3 and 10 cm
  • Column diameter of 35 mm and volume range of 10 mL to 100 mL
  • The column can withstand the harsh organic conditions in synthesis
  • The columns are easy to handle and the solid phase carriers are easily packaged

Small Oligo Synthesis Column

Small stainless steel synthesis columns are designed as fixed volume synthesis column reactors (equipped with filters and seals) for oligonucleotide synthesis.

  • Synthetic columns are manufactured to high standards to withstand the harsh organic conditions of oligonucleotide synthesis
  • Made of 316L stainless steel

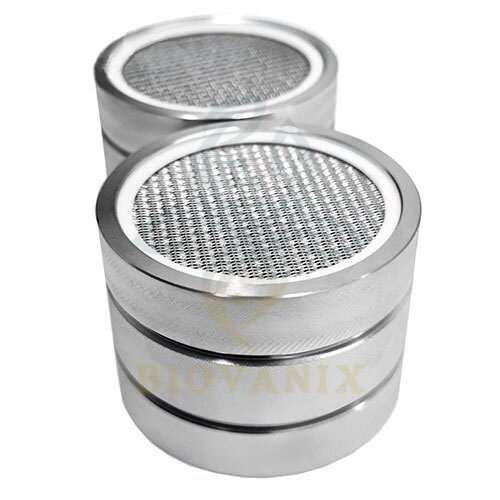

Biovanix Small Oligo Synthesis Column

Product Parameter

ProductoVolumenDiámetro interiorAltura
Oligo1.21,2 ml10 mm15 mm
Oligo6.36,3 ml20 mm20 mm
Oligo1212 ml27 mm21 mm
Oligo2424 ml35 mm25 mm
Oligo4848 ml44 mm32 mm

Adjustable Oligo Synthesis Column

Designed for the synthesis of oligonucleotides, Biovanix oligo synthesis columns are engineered to endure the demanding organic conditions typical in the synthesis process.

  • Adjustable column bed height, ideally set between 3 to 10 cm for optimal performance.
  • A 35mm column diameter with a capacity ranging from 10mL to 100mL.
  • Built to endure the stringent organic conditions prevalent in oligonucleotide synthesis.
  • User-friendly operation with an efficient solid-phase carrier packing process.
    Customization options available, including sizes with diameters of 70mm, 100mm, 200mm, and 350mm.
columna biovanix oligo systhesis

Product Parameter

Producto

Diámetro interior

Packing Length

Pressure Resistance

Weight (kg)

Columna Oligo35

35 mm

0-150mm

2Mpa

2

Columna Oligo50

50 mm

30-150mm

2Mpa

4

Oligo70 Column

70mm

30-150mm

2Mpa

10

Columna Oligo100

100 mm

30-150mm

2Mpa

17

Oligo200 Column

200mm

30-150mm

2Mpa

68

Oligo350 Column

350mm

30-150mm

2Mpa

250

Oligo70L Column

70mm

50-300mm

2Mpa

13

Oligo100L Column

100 mm

50-300mm

2Mpa

21

Oligo200L Column

200mm

50-300mm

2Mpa

83

Oligo350L Column

350mm

50-300mm

2Mpa

270

Oligo140 Column

140mm

30-150mm

2Mpa

31

Oligo140L Column

140mm

50-300mm

2Mpa

36

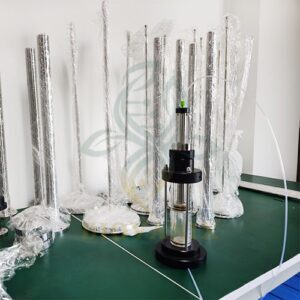

Factory Picture For Oligo Synthesis Column

Biovanix Oligo Synthesis column

Ready to Optimize Your Oligo Synthesis?

Stop compromising on column flexibility and start accelerating your process development. The Adjustable Oligo Column is the established, reliable solution for maximizing the throughput and quality of your workflow.

Click below to download the full technical data sheet and discuss your specific scale-up needs with our experts.
