Intelligent Pharmaceutical Synthesis/Detection Platform
Introducing Biovanix منصة ذكية للتصنيع والكشف الدوائي, designed to redefine efficiency and precision in your research. This comprehensive platform automates the entire experimental workflow, from initial preparation to final data logging, ensuring unparalleled accuracy and reproducibility.
Core Features & Automation:
سير العمل الآلي Our system integrates key laboratory processes, including الوزن الآلي, العينات, رد فعل, تجفيف, و إدخال بيانات, ، مما يلغي التدخل اليدوي والخطأ البشري.
تكامل سلس للمعدات يتكامل النظام بسلاسة مع مجموعة واسعة من المعدات المختبرية الأساسية، مثل توازنات, مضخات سوائل, عينات تلقائية, أفران, مفاعلات, أجهزة الطرد المركزي, كروماتوغراف الغاز (GC), و أجهزة الفصل اللوني السائل (LC).
ذكاء ودقة عالية يعمل النظام بدرجة عالية من الأتمتة، مدعومًا بخوارزميات تحكم ذكية، مما يضمن التنفيذ الدقيق والنتائج الدقيقة باستمرار.
Biovanix intelligent system is more than just a collection of automated devices; it is a unified solution that streamlines your entire research process, allowing your team to focus on analysis and innovation rather than repetitive manual tasks. With its high level of intelligence and proven accuracy, it’s the next step in laboratory automation.
Ai Driven Engine & Modular Equipment Matrix
AI assists with scientific thinking, while robots undertake experiments, freeing up scientists from tedious and repetitive desk and experimental work.
The company’s research is centred on the flexible intelligent track of life sciences, with the objective of constructing a modular equipment matrix and a “building-block” software-hardware collaborative ecosystem with AI middleware as the technical core. It is evident that the systems architecture has been meticulously designed to address the evolving requirements of experimental R&D, thereby facilitating the efficient execution of complex tasks and labour-intensive operations. This is achieved through the implementation of flexible departments. The system’s wide range of applications extends to fields such as life sciences, biological preparation, drug development, applied chemistry, and analytical detection. This adaptable and scalable solution offers significant advantages in these and other domains.
Core Features & Automation
7*24 hour automated synthesis
Thanks to the coordination of robotic arms, automated equipment and an intelligent scheduling system, the laboratory can operate unattended 24/7, overcoming the limitations of manpower and time.
AI autonomous parameter adjustment
The AI model dynamically optimises the core parameters of the formula based on detection and analysis data, forming an intelligent closed loop of experiment, analysis and optimisation.
High-throughput parallel synthesis and screening
Based on robotic arm cluster technology, it enables the simultaneous synthesis and screening of various compounds, exponentially increases experimental throughput and improves single-batch processing capacity by 5-10 times compared to manual operation. This allows a large number of candidate solutions to be covered quickly.
Automatic evaluation and analysis of synthetic
products Integrated XRD, spectral analysis and mass spectrometry, as well as other automated instruments, can analyse the core data of compounds in real time to enable autonomous parameter adjustment by AI.
Flexible Combination For Various Scenarios
Cell
Therapy
Synthetic
Biology
Biological Fermentation
Pharmaceutical Screening
Synthesis of Compounds
Program-free Operation Control System
Combined Instruments
- Mass Spectrometer
- Nucleic Acid
- Extraction
- Cell Counter
- Microplate Reader
- High-Content
- Imaging System
- Biological Safety
- Cabinet
- Cell Disruptor
- Laminar Flow Hood
Self-developed Products
Integrated Standard Instruments
- Automated Consumables Storage Rack

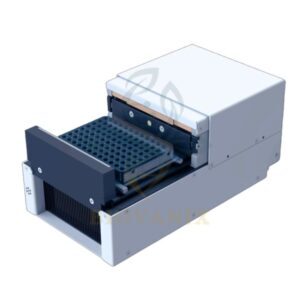

- Sealing Machine
- Film Peeling Machine

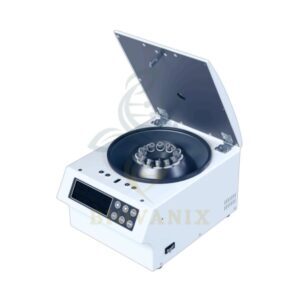

- Centrifuge
- CO₂ Incubator
- PCR Amplifier
- Microplate Reader

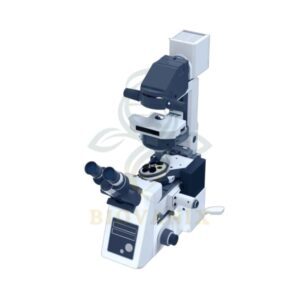

- Cell Imager
- Washer
- Constant Temperature Shaker Incubator
- Multi-Position Shaker
- Fully Automated CO₂ Shaker Incubator
Liquid Handling & Robotics

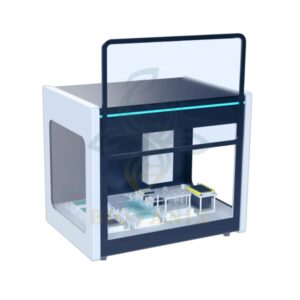

- 8-Channel Liquid Handling Workstation
- Automated Liquid Dispensing System
- High-Throughput Cell Dispenser Workstation
- Fully Automated Cell Culture Flask Workstation
- Intelligent Media Dispenser System
Cell & Molecular Biology
- Intelligent Cell Line Screening Automation System
- Fully Automated Cell Transfection Workstation
- qPCR Pre-processing System
- Plasmid Construction System
- Intelligent DNA Automated Assembly System
Microbial & Protein Testing
- Intelligent Microbial Plate Coating System
- Intelligent Enzyme-Linked Immunosorbent Assay (ELISA) Automation System
- Fully Automated Protein Purification Workstation
- High-Throughput Screening for Enzyme Engineering
Medicine Screening
- High Content Screening
Self-developed modules and integrated equipment have the ability to design and integrate hardware instruments, building technical barriers
Biovanix Information has developed a comprehensive system of solutions for the rapid construction of automated laboratories, leveraging its automated control platform and Industrial Internet of Things (IIoT) technology. The system integrates proprietary control and drive technologies for specialised instruments used in cell research, biological experiments, materials science and chemical production. This framework significantly shortens project delivery cycles and optimises profit margins, establishing robust cost advantages and creating technological barriers in industry competition.
Sample storage
Weighed on a scale
Switching console workstation
Ultraviolet spectrometer
Powder discharge
Pipetting Workstation
Suction station
Gas chromatography workstation
Liquid discharge
Liquid workstations
PCR experimental workstation
Clinical diagnostic workstation
Mix the powder and liquid
Centrifugation work station
XRD work station
Research workstation
Magnetic stirring
Baking oven station
ICP work station
Synthetic biology workstation

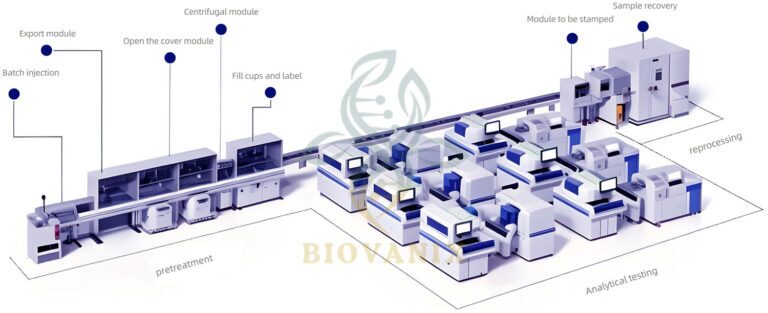

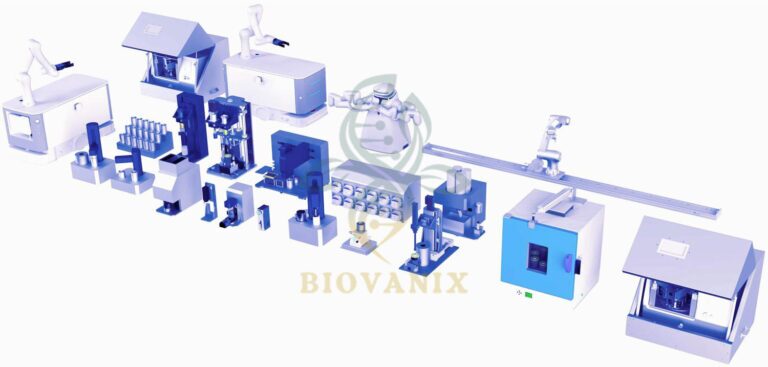

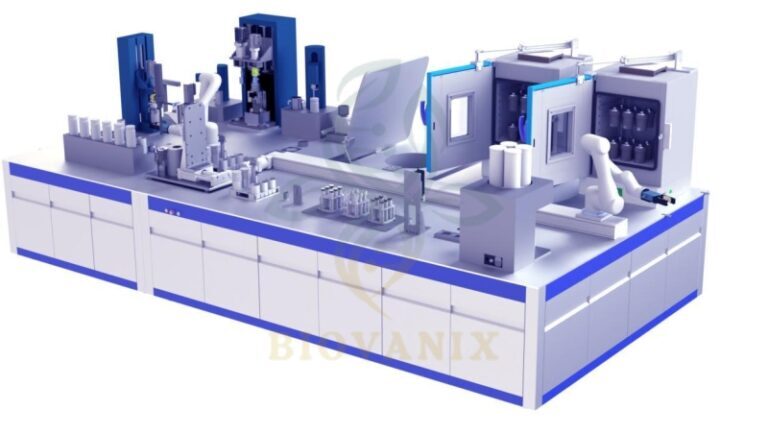

Schematic Diagram of Life Science Automation Laboratory

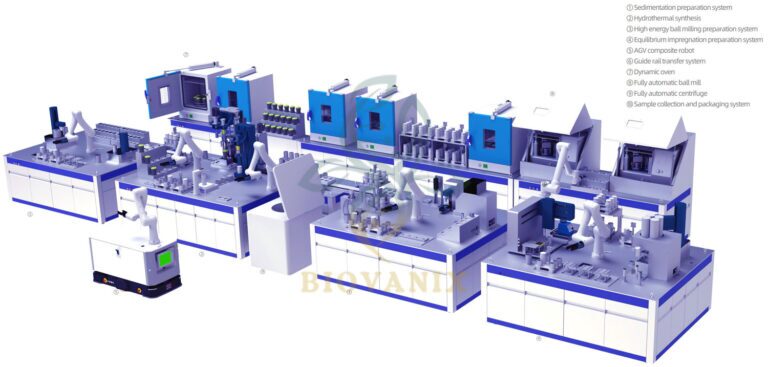

Automated Catalyst Preparation Laboratory
Laboratory for Catalyst Synthesis & Preparation

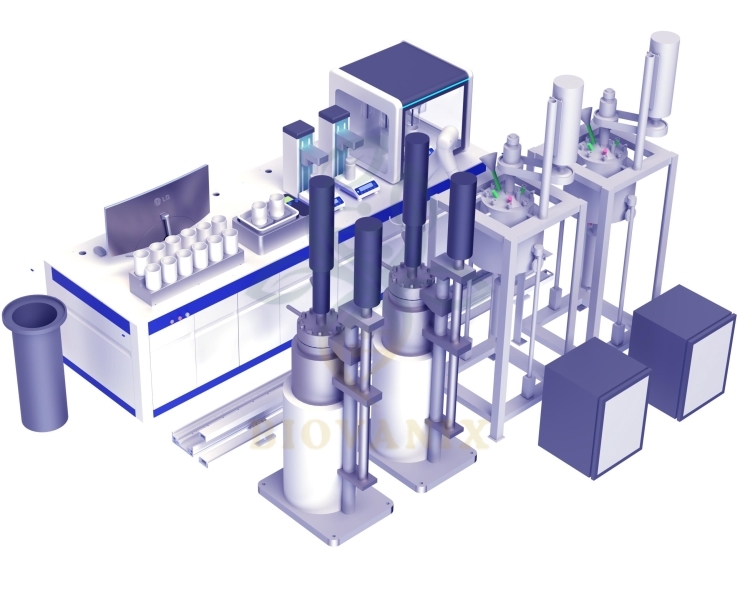

Automatic Hydrothermal SynthesisLaboratory

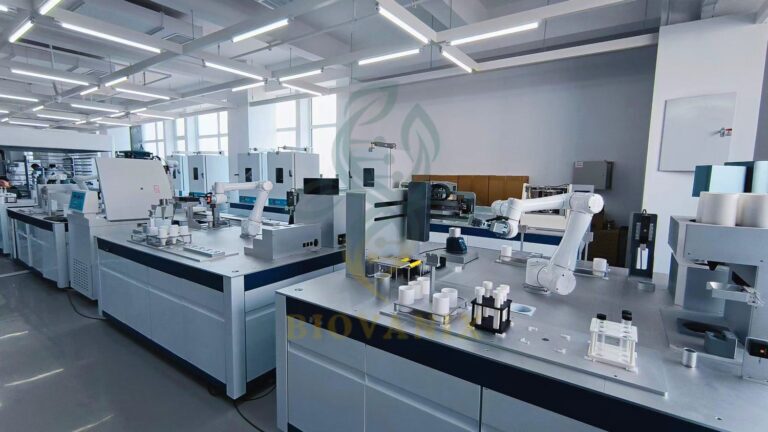

Catalyst Synthesis Laboratory
Self-developed Standard Equipment
Equipment Management System
- This system enables the precise operation and activation of various instruments and devices, simplifying equipment integration and management. It also provides real-time monitoring to ensure optimal performance at all times.
Intelligent Task Scheduling System
- Dynamically allocates equipment resources based on actual demand. For multiple research projects, it analyses task priorities and equipment utilisation in real time, automatically adjusting allocation plans to enhance efficiency and scientific output.
Robotic Arm Control System
- This system uses modular programming to eliminate the need for traditional complex coding methods. Researchers can easily manage robotic arm positions and trajectories without in-depth programming knowledge, enabling them to complete programming tasks quickly and freeing up more time for experiments.
Experiment Design and Execution Platform
- It provides researchers with a visual, convenient and flexible interface for designing experimental workflows. Previously, modifying experimental procedures required costly and time-consuming secondary development by specialists. Now, however, researchers can optimise and adjust workflows at any time based on practical needs and creative ideas, freely exploring the unknown and unleashing their creativity and imagination to unlock greater possibilities for scientific research.

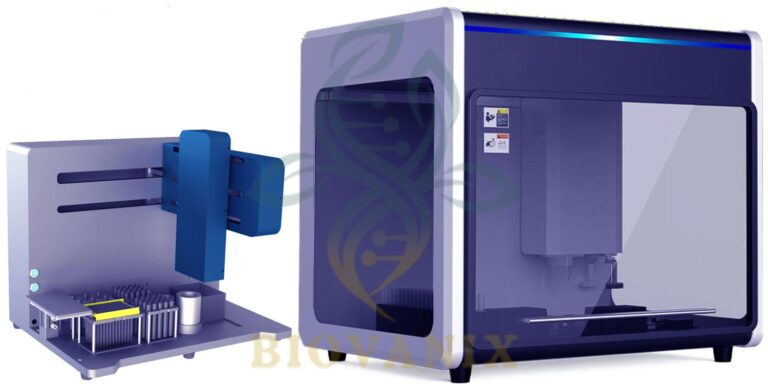

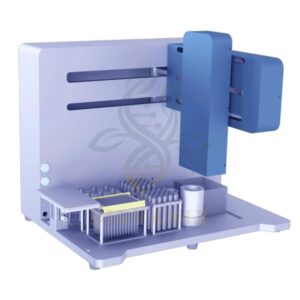

Automatic Pipetting Workstation
Pipette Tip
Pipette Tip النوع | الحجم | CV |
50μL | 1μL | <9% |
| 200μL | 10μL | <2% |
1000μL | 1000μL | <1% |
- One-time use pipette tips: 50, 200, 1000 (tip available in microliter size)
- Volumetric pipette specifications: 500, 1000
- Claw: Optional with or without claw
- Mechanical arm: Optional configuration

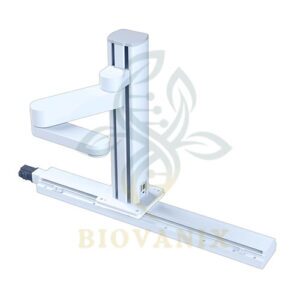

Robotic Arm
Flexible and independent 8 channels, each channel can perform unequal volume pipetting, independent Z-axis movement, liquid level sensing, and span Y-axis movement, making it easy to perform pipetting operations on experimental vessels such as tubes, microplates, deep well plates, trays, and small bottles.
Anti-Droplet Technology
When transferring volatile liquids, anti-droplet technology compensates for pressure changes in the channel to prevent the formation of liquid droplets due to pressure fluctuations.
التطبيق
- PCR/qPCR
- Protein Purification NGS
- Nucleic Acid Extraction
- ELISA
- Sanger Sequencing
- تركيز
- Uniformization
- Continuous Gradient
- Dilution

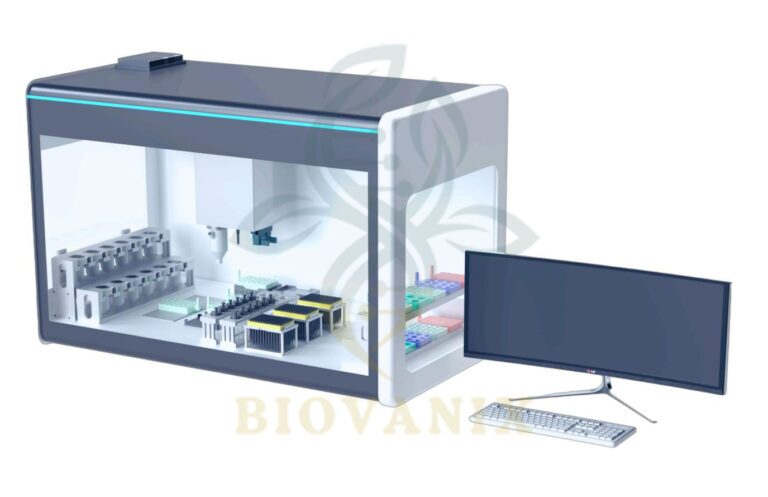

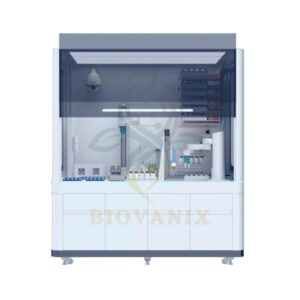

Biovanix Automatic Liquid & Powder Sample Preparation System is a high-end automated device specifically designed for laboratory settings, dedicated to achieving precise automatic weighing and dispensing of powder and liquid samples. This equipment deeply integrates cutting-edge automation technology, high-precision control systems, and a user-friendly interface, effectively mitigating human-induced errors and significantly enhancing the repeatability and reliability of experimental results.
- دقة فائقة، بيانات موثوقة
- أتمتة عالية، كفاءة مضاعفة
- مرونة استثنائية، توافق واسع
Application Area
- Chemistry
- Biology
- Pharmaceuticals
- Sample pretreatment
- Materials science
المعلمة
معلومات أساسية
الوظيفة | تحديدn |
البُعد | 1400 مم × 750 مم × 750 مم (يخضع للقياسات الفعلية) |
سعة الدرج | 8 صواني |
سعة صينية واحدة | 6 / 12 / 24 حاوية (حسب مواصفات الحاوية) |
أقصى إنتاجية لمعالجة العينات | 192 عينة |
محطات التغذية الاهتزازية | محطتان |
مزود الطاقة | 220 فولت 800 وات |
معالجة المساحيق
الوظيفة | تحديدn |
عدد المواد المسحوقة | 12 أنواع |
حجم قادوس المواد | ٤٠ مل |
أنواع الحاويات المستهدفة المتوافقة | قوارير زجاجية سعة 2 مل، 8 مل، 20 مل |
نطاق وزن العينة الصلبة | 1 ملغ - 20 غ |
دقة الوزن | 0.1 ملغم |
دقة الجرعة | ± 0.3 ملغ |
معالجة السوائل
الوظيفة | تحديدn |
عدد الكواشف السائلة | 12 أنواع |
حجم خزان الكاشف | ٤٠ مل |
أنواع الحاويات المستهدفة المتوافقة | أنابيب كواشف 6 مل، 10 مل، 15 مل، 20 مل |
نطاق حجم سوائل التوزيع | 10 ميكرولتر - 10 مل |
دقة توزيع السائل | ±1% |
مواصفات الحاوية
النوع | المواصفات (مي) | القطر الخارجي (مم) | ارتفاع (مم) | لوح واحد قدرة التحميل |
حاوية مسحوق | 2 | 16 | 34 | 24 |
8 | 16 | 61 | 12 | |
20 | 27 | 57 | 6 | |
وعاء سائل | 6 | 12 | 75 | 24 |
10 | 12 | 100 | 24 | |
15 | 15 | 100 | 24 | |
20 | 15 | 150 | 12 |
لماذا تختارنا؟
Biovanix: Your Partner in Pharmaceutical Synthesis & Detect System
في Biovanix، نحن متخصصون في توفير أحدث أنظمة التوليف الصيدلانية والكيميائية المخصصة المصممة خصيصًا لتلبية الاحتياجات الفريدة للشركات ومختبرات الأبحاث. وتتمثل مهمتنا في تمكين التقدم العلمي من خلال تقديم حلول مبتكرة تعمل على تبسيط عملية التوليف وضمان الكفاءة والدقة.
أنظمة مصممة خصيصاً حسب الطلب: يعمل فريق الخبراء لدينا عن كثب معك لفهم متطلباتك الخاصة، وتصميم وتصنيع أنظمة تتماشى تمامًا مع أهدافك البحثية واحتياجاتك الإنتاجية.
الجودة والموثوقية: نحن نعطي الأولوية للجودة في كل خطوة من خطوات تطوير أنظمة التوليف لدينا، مما يضمن حصولك على معدات موثوقة وعالية الأداء تلبي أعلى معايير الصناعة.
الابتكار في الطليعة: تظل Biovanix في طليعة التطورات التكنولوجية، حيث تدمج أحدث الابتكارات في أنظمتنا لتزويدك بميزة في مساعيك البحثية الصيدلانية والكيميائية.
الدعم الشامل: يمتد التزامنا إلى ما بعد البيع. فنحن نقدم دعمًا شاملاً، بما في ذلك التدريب والصيانة والتحديثات المستمرة للحفاظ على أنظمتك في أعلى مستويات الأداء.
الشراكة من أجل النمو: نحن ننظر إلى عملائنا كشركاء، وننظر إلى عملائنا كشركاء، ونموّنا متشابك مع نموك. تكرس شركة Biovanix جهودها لدعم رحلتك من المفهوم إلى التسويق التجاري، وتعزيز بيئة تعاونية لتحقيق النجاح المتبادل.
مرحبًا بك في Biovanix، حيث يلتقي الابتكار مع التخصيص في مجال التخليق الصيدلاني والكيميائي. لنصنع مستقبل العلوم معًا.
