AutoPro Protein Chromatography System
Compact Precision for Next-Generation Biopurification
The Challenge: The Need for Speed and Purity
In modern biopharmaceutical and academic research, the demand for rapid, high-purity isolation of sensitive biomolecules—from complex proteins to emerging vaccines—is non-negotiable. Traditional systems often compromise on either footprint, performance, or material inertness, leading to delays and sample loss.
The Solution: Introducing the Biovanix AutoPro

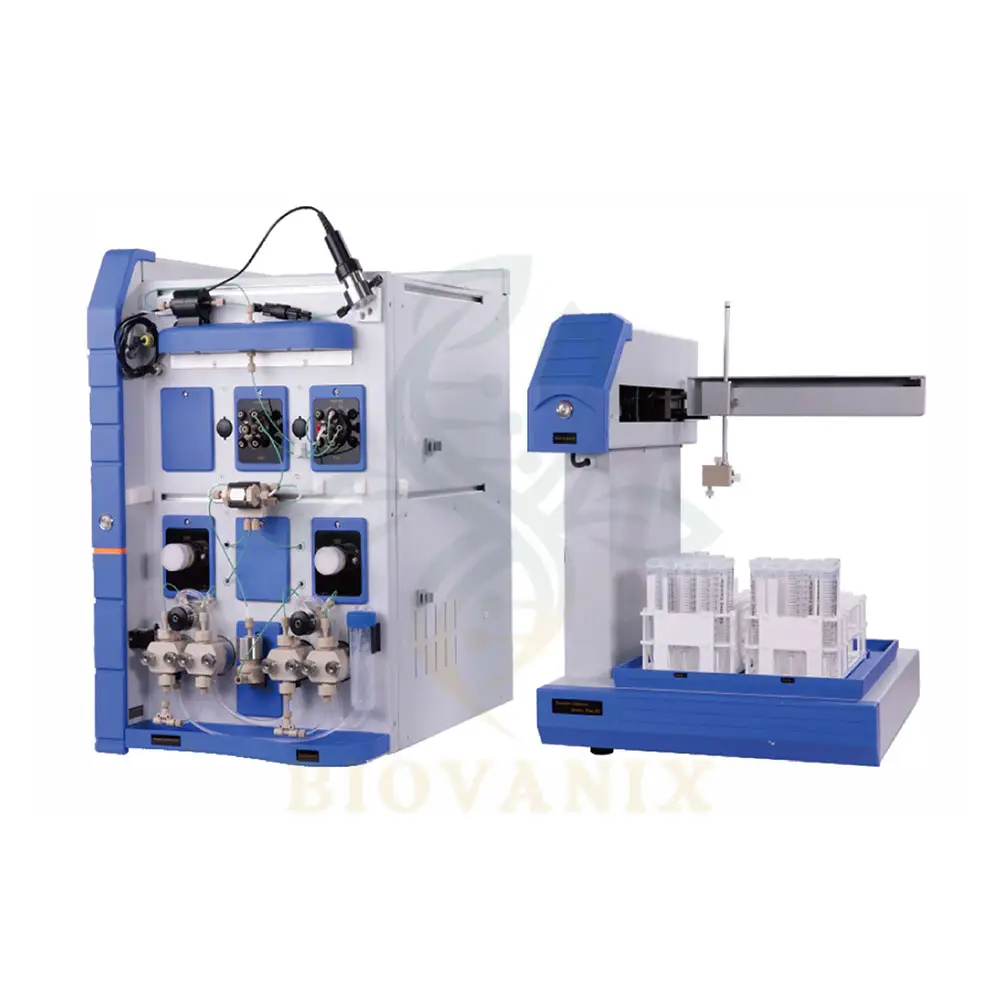

Biovanix AutoPro Protein Chromatography System is a compact, modular, high-performance liquid chromatography (HPLC/FPLC) system engineered for researchers and developers requiring microgram to gram scale purification with exceptional precision and reliability. Designed with renowned core components, the AutoPro delivers unparalleled performance in a space-saving package.
Why Choose AutoPro?
Broad Application Range: Rapid, high-resolution purification of a diverse range of bioproducts:
- Proteins & Enzymes
- Nucleic Acids (DNA/RNA)
- Vaccines & Therapeutics
- Polysaccharides
Maximum Biocompatibility: All wetted parts (components in contact with the sample) are constructed from bio-inert materials, guaranteeing:
- Zero non-specific binding
- Elimination of sample degradation
- Maximum integrity for sensitive molecules
Uncompromising Precision: Utilizes core components from reputable manufacturers to ensure high performance and reproducibility in every run.
Future-Proof Flexibility: The system’s modular design allows for immediate or future upgrades, enabling you to enhance automation and throughput capabilities as your research needs evolve.
Your Control Hub for Purification Automation
Intuitive CDS System Operating System supports a comprehensive suite of chromatographic techniques, offering the highest standards of purification automation:
| Feature | Benefit to Your Lab |
| Technique Support | Ion Exchange (IEX), Size Exclusion (SEC), Affinity (AC), Hydrophobic Interaction (HIC), etc. |
| Automation | Pre-set and customizable methods for reproducible, hands-free operation. |
| Validation | Provides high-precision data logging necessary for regulatory and quality control purposes. |
Technical Specification
| Model | Flow Rate Range | Pressure Range | Flow Accuracy |
|---|---|---|---|
| AutoPro25 | 0.001–25 ml/min | 0–27.5 MPa | ±1.5% |
| AutoPro100 | 0.001–100 ml/min | 0–10 MPa | ±1.5% |
| AutoPro150 | 0.001–150 ml/min | 0–5 MPa | ±1.5% |
Customization
Standard Configuration
- Dual pump system (AutoPro25/AutoPro100/AutoPro150)
- Three-position seven-port valve (software-controlled)
- Fixed single-wavelength detector (LED light source, ≥8000 hours lifespan)
- Temperature sensor (0–100°C, ±1% precision)
- Back pressure valve (20–200 psi adjustable)
- Inline filter (20 μm titanium alloy)
- Dynamic mixer (2 ml chamber)
- Chromatographic column clamp (two sets)
- Control system (computer, keyboard, mouse, Chinese/English software)
Optional Upgrades
- pH detector (0–14 pH range, ±0.1 precision)
- UV detector (fixed or variable wavelength)
- Outlet valve (two or nine channels)
- Component collector (supports 1–50 ml samples)
- Column valve (single or three-column configuration)
- Pressure monitoring (pre-column or front/back column)
- Sample pump (SP25D/SP100D/SP150D)
Application
Protein Purification
The AutoPro Protein Chromatography System is designed to efficiently purify proteins in quantities ranging from micrograms to grams. It supports various chromatographic techniques, such as ion exchange chromatography (IEX), size exclusion chromatography (SEC), and affinity chromatography, enabling high-yield and high-purity protein recovery.
Vaccine Purification
Vaccines require high purity and sterility to ensure safety and efficacy. The AutoPro system is ideal for vaccine purification due to its enclosed design and bio-inert materials, which prevent contamination and ensure consistent product quality.
Nucleic Acid Purification
AutoPro is well-suited for the purification of DNA, RNA, and other nucleic acids, which require sensitive handling to avoid degradation. The system’s advanced detection and control features ensure precise and reliable results.
Peptide Purification
Peptides are often purified in small quantities, requiring high precision and sensitivity. The AutoPro system’s ability to handle low flow rates and precise gradient elution makes it ideal for peptide purification.
Blood Products
Blood products, such as plasma proteins and clotting factors, require gentle and efficient purification to retain functionality. The AutoPro system’s gentle operation and high purity ensure the integrity of these critical biological products.
Polysaccharide Purification
Polysaccharides, such as those used in vaccines and biopharmaceuticals, require careful purification to maintain their complex structures. The AutoPro system’s flexibility and precision make it well-suited for this application.
Advanced Component Collector: Guarding Your Valuable Samples
AutoPro Protein Chromatography System integrated component collector is engineered for protection and performance:
- Enclosed Design: Prevents contamination from airborne particles, preserving the purity of your collected fractions.
- Space-Saving Footprint: Stackable design maximizes valuable bench space in crowded labs.
- High Positioning Accuracy: Unique closed-loop control technology ensures fractions are collected precisely, minimizing cross-contamination and maximizing yield.
- Quiet & Efficient Operation: High operating speed coupled with low vibration and noise reduces the risk of sample disturbance and loss.
Ready to Automate Your Biopurification Workflow?
Biovanix AutoPro Protein Chromatography System is the smart investment for labs seeking a reliable, high-precision, and adaptable chromatography platform. Stop compromising on purity and throughput.
➡️ Request a Demo & Custom Quote
