Stainless Steel HPLC Column Tubing

BioVanix stainless steel HPLC column tubing is engineered for precision, durability, and performance in demanding laboratory and industrial applications. Crafted from high-purity 316L stainless steel, it ensures exceptional corrosion resistance, high-pressure tolerance, and superior chromatographic efficiency.

Tubing Materials

Primary Material: High-purity 316L stainless steel (low carbon, high molybdenum content).
Compliance: Meets industry standards for pharmaceutical, biotech, and chemical processing applications.

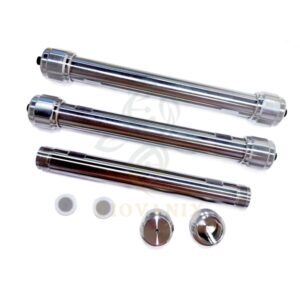

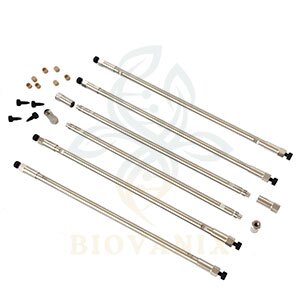

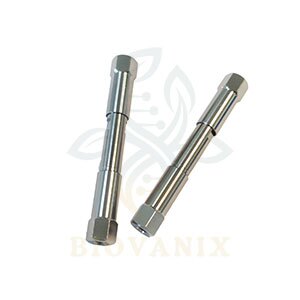

Stainless Steel HPLC Column

Inner diameter: 2.1mm, 3.0mmm, 4.0mm, 4.6mm, 7.8mm, 10mm, 20mm, 21.2mm, 30mm, 50mm
Length: 20-500mm
Internal polishing
Frits: 0.5 um, 1 um, 2 um, 5 um

2.1mm I.D.

3.0mm I.D.

4.0mm I.D.

4.6mm I.D.

7.8mm I.D.

10mm I.D.

20mm I.D.

21.1mm I.D.

30mm I.D.

50mm I.D.

SS Frits for HPLC Column

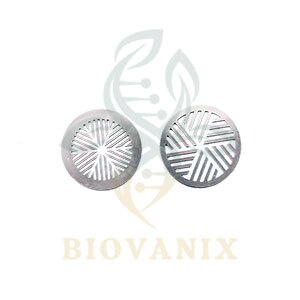

Distribution Plate for HPLC Column

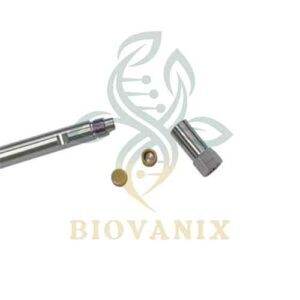

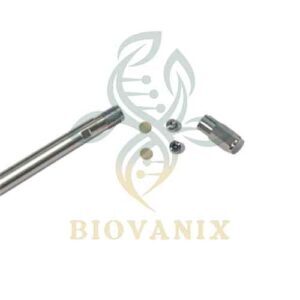

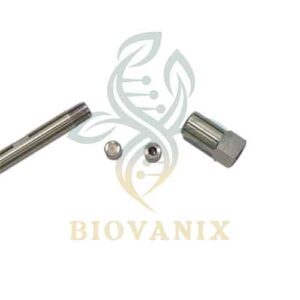

Different Column Frits For Different Applications

To meet diverse user needs, Biovanix developed three types of sieve plate connectors: sheet-type, PEEK-jacketed, and stainless steel hard-seal sieve plates. The sheet-type is the earliest generation design. The PEEK-jacketed is an optimized upgrade of the sheet-type: when the column head is tightened, the outer PEEK ring deforms under pressure, fills gaps between the metal connector and column tube to ensure a leak-free seal. The stainless steel hard-seal is designed for ultra-high-pressure chromatography columns, with a surface roughness of Ra < 0.2 on its hard-seal contact surface, overcoming PEEK material’s insufficient pressure resistance.

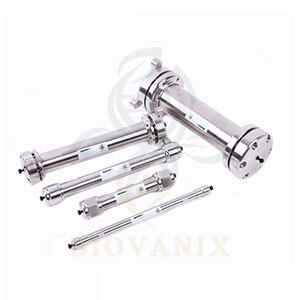

Preparative HPLC Column Tubing

Biovanix has developed threaded column tubes and flanged column tubes tailored for distinct application scenarios. Threaded column tubes feature convenient assembly and disassembly with rapid operability, making them suitable for small-diameter, medium-low pressure applications that require frequent maintenance in laboratory settings. Flanged column tubes, which achieve uniform stress distribution via multiple bolts, exhibit a high pressure-bearing capacity, minimal dead volume, and enhanced structural wear resistance. This type represents the dominant solution for industrial scale-up, large-diameter, and high-pressure preparative separation processes.

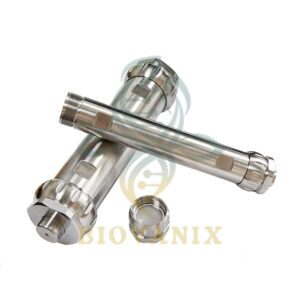

Threaded Column Tubing

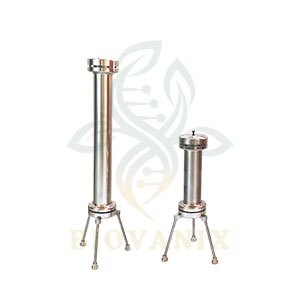

Flanged Column Tubing

Key Features

Corrosion & High-Pressure Resistance

Withstands aggressive solvents, acids, and high-pressure environments (up to *** MPa).
Ideal for HPLC, UHPLC, and preparative chromatography systems.

Ultra-Smooth Internal Surface

Mirror-polished inner wall with surface roughness ≤ 0.2 μm, minimizing flow resistance and band broadening.
Enhances column efficiency (theoretical plate count) and peak resolution.

Precision Geometry

Uniform circular cross-section (±0.01 mm tolerance).
Low dead volume design ensures minimal sample dispersion and high reproducibility.

Consistent Performance

Smooth inner surface and tight dimensional control guarantee stable flow profiles and repeatable results.
Compatible with all major packing materials (e.g., silica, polymer, affinity resins).
