HPLC Liquid Chromatography System

HPLC Liquid chromatography systems, offered by BioVanix, are sophisticated instruments used for separating, identifying, and quantifying components in a liquid mixture. Utilizing high-end technology, these systems allow for precise analysis of complex samples, making them essential in pharmaceuticals, environmental testing, and biochemical research. They are known for their accuracy, efficiency, and versatility, enabling detailed analysis of a wide range of substances with high sensitivity and resolution.

  • Dual plunger series mode, floating plunger design.
  • Advanced pump drive system, higher precision, better stability.
  • Electronic pulse compensation technology, and multi-point flow correction, ensure accuracy, the range of flow velocity is more accurate, more stable operation and reliable performance, and cost-effective
  • Open computer control communication protocol, easy third-party software control.

HPLC System

Biovanix hplc system

10ml System

Biovanix hplc system

50ml System

Biovanix hplc system

100ml System

Biovanix hplc system

200ml System

Biovanix hplc system

500ml System

Biovanix hplc system

1000ml System

Biovanix hplc system

3000ml System

Isoplex 10 HPLC System

HPLC System (10ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 10ml pump head



high-pressure pump, 10ml pump head



Analysis variable dual wavelength UV/VIS

detector



Analysis variable dual wavelength UV/VIS de-

tector



Flow cell 10ml



Flow cell 10ml



Manual injection valve 7725i



Manual injection valve 7725i



Workstation (SuperDog)



Workstation (SuperDog)



Solvent tank



Solvent tank



Tool kits



Tool kits



Optional:

Oscillometric refractive detector (Knauer/Shimadzu, software with digital-to-analogue converter) Evaporative light photodetector (Unimicro, software requires additional digital to analogue converter) Fluorescence detector (Shimadzu, software requires additional analogue-to-digital converter) Autosampler (optional Dutch Spark)

C18 5um 4.6-250mm HPLC column

Hardware:

Analytical High Pressure Seals Analytical Low Pressure Seal Ring

Double pump head analyzing finished plunger 3.175×42 Check valve (Switzerland)

Detector deuterium lamp

Isoplex 50 HPLC System

HPLC System (50ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 50ml pump head



high-pressure pump, 50ml pump head



Analysis variable dual wavelength UV/VIS

detector



Analysis variable dual wavelength UV/VIS de-

tector



Flow cell 50ml



Flow cell 50ml



Manual injection valve 7725i



Manual injection valve 7725i



Workstation (SuperDog)



Workstation (SuperDog)



Solvent tank



Solvent tank



Tool kits



Tool kits



Options:

Oscillometric refractive detector (Knauer/Shimadzu, software with digital-to-analogue converter) Injection loop (1ml/2ml/5ml/10ml)

10-250mm HPLC column (including analytical flow cell, backpressure tube) 20-250mm HPLC column

30-250mm HPLC column

Hardware:

Seal ring 6.35

Plunger 6.35 x 43

Low pressure seal 6.35 Detector deuterium lamp

Isoplex 100 HPLC System

HPLC System (100ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 100ml pump head



high-pressure pump, 100ml pump head



Preparative variable dual wavelength UV/

VIS detector



Preparative variable dual wavelength UV/VIS

detector



Flow cell 100ml



Flow cell 100ml



Workstation (SuperDog)



Workstation (SuperDog)



Tool kits



Dynamic mixer



Tool kits



Optional:

Injector pump: High-pressure pump 100ml / High-pressure pump 50ml Preparation manual injection valve

Injection loop (1ml/2ml/5ml/10ml/20ml) 20-250mm HPLC column

30-250mm HPLC column 50-250mm HPLC column

Hardware:

Seal ring 6.35

Plunger 6.35 x 43

Low pressure seal 6.35

Detector deuterium lamp

Isoplex 200 HPLC System

HPLC System (200ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 200ml pump head



high-pressure pump, 200ml pump head



Preparative variable dual wavelength UV/

VIS detector



Preparative variable dual wavelength UV/VIS

detector



Flow cell 200ml



Flow cell 200ml



Workstation (SuperDog)



Workstation (SuperDog)



Tool kits



Dynamic mixer



Tool kits



Optional:

Injector pump: High-pressure pump 200ml / High-pressure pump 100ml / High-pressure pump 50ml Preparation manual injection valve

Injection loop (1ml/2ml/5ml/10ml/20ml) 20-250mm HPLC column

30-250mm HPLC column 50-250mm HPLC column DAC-50 System

DAC-80 System

Hardware:

High pressure seal / Low pressure seal for 200mL pump 200ml one-way valve

Detector deuterium lamp

Isoplex 500 HPLC System

HPLC System (500ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 500ml pump head



high-pressure pump, 500ml pump head



Preparative variable dual wavelength UV/

VIS detector



Preparative variable dual wavelength UV/VIS

detector



Flow cell 500ml



Flow cell 500ml



Workstation (SuperDog)



Workstation (SuperDog)



Tool kits



Dynamic mixer




Tool kits



Optional:

Injector pump: High-pressure pump 500ml / High-pressure pump 200ml / High-pressure pump 100ml Preparation manual injection valve

Injection loop (1ml/2ml/5ml/10ml/20ml) DAC-100 System

Hardware:

High pressure seal / Low pressure seal for 500mL pump 500ml one-way valve

Detector deuterium lamp

Isoplex 1000 HPLC System

HPLC System (1000ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 1000ml pump head



high-pressure pump, 1000ml pump head



Preparative variable dual wavelength UV/

VIS detector



Preparative variable dual wavelength UV/VIS

detector



Flow cell 1000ml



Flow cell 1000ml



Workstation (SuperDog)



Workstation (SuperDog)



Three-way ball valve, 6mm I.D. (sample

injection



Dynamic mixer



Tool kits



Tool kits



Optional:

Injector pump: High-pressure pump 1000ml / High-pressure pump 500ml / High-pressure pump 200ml Preparation manual injection valve

DAC-100 System

DAC-150 System

Hardware:

High pressure seal / Low pressure seal for 1000mL pumps 1000ml one-way valve

Detector deuterium lamp

Isoplex 3000 HPLC System

HPLC System (3000ml/min pump head)

Isocratic System

Gradient System

high-pressure pump, 3000ml pump head



high-pressure pump, 3000ml pump head



Preparative variable dual wavelength UV/

VIS detector



Preparative variable dual wavelength UV/VIS

detector



Flow cell 3000ml



Flow cell 3000ml



Workstation (SuperDog)



Workstation (SuperDog)



Tool kits



Static Mixer




Tool kits



Optional:

Injector pump: High-pressure pump 3000ml / High-pressure pump 1000ml / High-pressure pump 500ml

Preparation manual injection valve DAC-200 System

DAC-300 System

Hardware:

High pressure seal / Low pressure seal for 3000mL pumps 3000ml one-way valve

Detector deuterium lamp

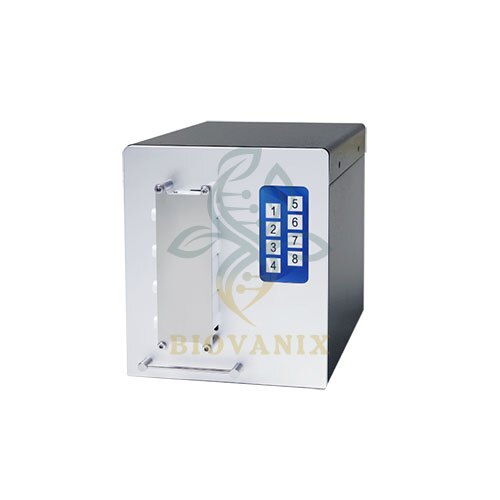

Distillate Collector For HPLC System
