Isoplex HPLC Column Packing System
Biovanix Isoplex HPLC Column Packing System is designed for packing analysis, semi-preparative and preparative columns, with higher pressure and power. It is for both analytical and preparative columns with inner diameter 2.1mm~50mm.
Homogenate tanks are selected based on the size of column tubings.
Service：
1. One-year warranty
2. Free replacement hardware
3. Free online training for operation and maintenance
Parameters
| Isoplex HPLC Column Packer | |
| Column ID | 2.0/3.0/4.0/4.6/10/20/30/50 mm |
| Output Pressure | 19000 psi |
| Flow Rate | 3.3L/min |
| Output Power | 2hp |
| Air Cylinder | Double |
Hardware
| Standard Parts | Optional Parts |
| Operation instruction | Air compressor |
| Main machine | Air purification system |
| Control panel | Homogenate tanks |

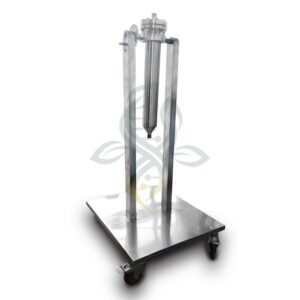

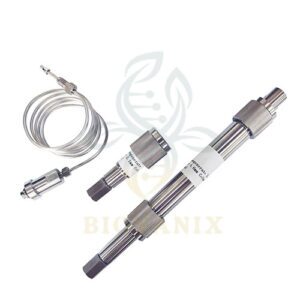

| Column Support | Column connection (ID 2.1-50mm) |

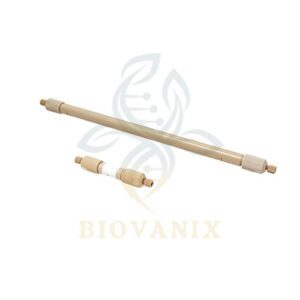

| Stainless steel connections | Empty HPLC columns (ID 2.1-50mm) |
| Connect tubings | Packing materials |
Advantages For Isoplex Column Packing System
Powerless Design & Emergency Cut-off Valves
Isoplex column packing system is driven by compressed air. No need for power supply. You can put it everywhere you like.
This machine also has emergency cut-off valves to deal with emergencies.
Small in size, Easy to transport
The size for Isoplex column packing system is about 60cm(L) * 40cm(W) * 30cm(H). It can be put on the labaratory table, fuming cupboard, or even a rolling cart. Gross weight is about 35kg.

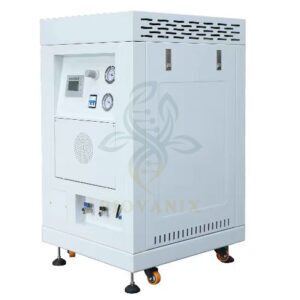

We also provide laboratory-grade small-sized integrated air compressor 52cm(L)*61cm(H)*102cm(H) which can improve the utilization rate of space.
Reduce Noise

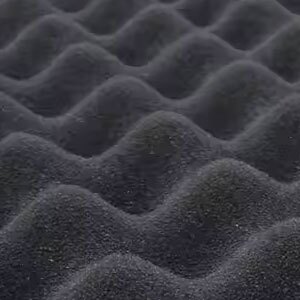

We are equipped with a silencer and a sound-absorbing sponge inside of the main machine to protect labour health. When using this machine, labourers do not need to wear noise-cancelling headphones or any other ear-protection gear.
Wide range of application
Isoplex column packing system can pack almost all kind of HPLC columns. Innerdiameter from 2.0mm to 50mm, length from 20mm to 500mm.
Seven types of homonate tanks for different types of HPLC columns. Or customized based on your needs.
Customized Service
We provide customized service based on different needs, including support for homonate tanks, tubings, connectors, packing materials.
Detailed Pictures
Main Machine
Small Homonate Tank
Big Homonate Tank
Video
Operation for HPLC column packer (old version)
Product Description (New Version)
Order Information
| Production Number | ||||||
| Main Machine | Z20004650 | |||||
| Homonate Tank | For 2.1mm | For 4.6mm | For 10mm | For 20mm | For 30mm | For 50mm |
| Z0502115 | Z0504630 | Z0501030 | Z0502030 | Z0503030 | Z0505030 | |
Homanate tanks are customised based on actual needs. Please contact us for details >>
